SYGNT302TAD88 Standy Power 880KW 12-Cylinder Diesel Engine

These engines include non-road diesel engines, marine diesel engines, alternators and generator sets, which, as part of the main generator or standby power supply, are often used in communication, railway, oil, airports, hospitals, field exploration and other applications.

Category:

SYGNT Series Diesel Engines

Message

Contact

Product Details

Application:

The power of the 12-cylinder diesel engine is 880KW and the diesel engine can be assembled with the brushless synchronous motor as the generator set. The generator set can be applied to the real estate, hotels, banks and other commercial electricity. Besides, the generator set can also be used for the mining, oil fields, building construction, field engineering and other industrial electricity.

The diesel engine can also cooperate with the fire high pressure pumps to server for the fire extinguishment system.

The diesel engine can be assemble with the sand pumps as the pump set and they can be used for the sand digging machines and water pumps.

Parameters:

Model	SNT302TAD88
Bore (mm)	138
Stroke (mm)	168
Compression Ratio	14
Displacement (L)	30.2
1h Power (kW)	880
Min. BSFC(g/kW.h)	195
BSFC@Oil Rated Condition (g/kW.h)	≤0.7
Speed Regulating Rate(%)	0-5
Idle Speed (r/min)	700
Rated Speed (r/min)	1500/1800(Optional)
Noise(dB)	≤117
Smoke (FSN)	≤2
Net Weight (kg)	2150
Interface	SAE 0#/18"

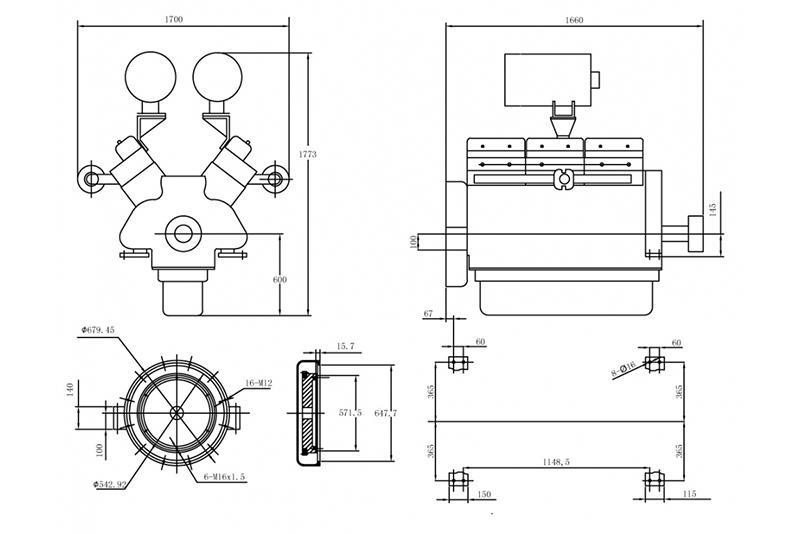

Engine package weights and dimensions

Length	1660mm
Width	1700mm
Height	1773mm
Weight(Dry)	2150kg

Shangyan Power, is a leading brushless alternator manufacturer and supplier since 1993, offering 710KVA-1725KVA 4-pole three phase alternator and diesel engine for making diesel generating sets. Our company design and manufacture different types of GR400 AC electric generator as well as provide Standy Power and backup power solutions in specific demands. With engineering team and complete manufacturing equipment for making brushless alternator and diesel engines, we provide quality diesel power solutions for customers.
