SY6D9D255-S 255KW 6-Cylinder Diesel Engine
Category:
Product Details
Applications:
SY6D9D255-S Standy Power 255KW 6-cylinder diesel engine can be matched with brushless synchronous motors to assemble into a generator set that can be applied to real estate, hotels, banks and other commercial electricity. Besides, the generator set can also support mining, oil fields, building construction, field engineering operation and other industrial electricity.
At the same time, this diesel engine can also be matched with the fire control high pressure water pump to serve fire protection and fire extinguishing. In addition, It can be used for the sand dredging machine and water suction pump in agricultural machinery after forming a pump set with a suction pump and a sand pump.
Parameters:
| Model | SY6D9D255-S |
| Type | 4-stroke, water cooled, on line, direct injection |
| Number of cylinders | 6 |
| Bore, mm | 114 |
| Stroke, mm | 144 |
| Displacement, L | 8.82 |
| Compression ratio | 18 |
| Rated power kW/1h | 255kW |
| speed r/min | 1500/1800 |
| Firing order | 1-5-3-6-2-4 |
| (from free end) | |
| Direction of rotation | Counterclockwise |
| (viewed from flywheel end) | |
| Starting | Electrical |
| Net weight, kg | 770 |
| Length, mm | 1578 |
| Width, mm | 778 |
| Height, mm | 1260 |

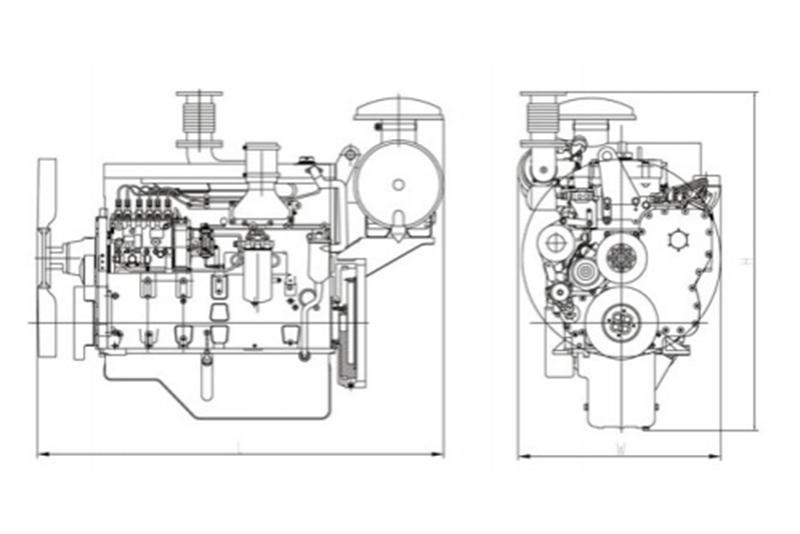

Engine package weight and dimension
Shangyan Power, is a leading brushless alternator manufacturer and supplier since 1993, offering 710KVA-1725KVA 4-pole three phase alternator and diesel engine for making diesel generating sets. Our company design and manufacture different types of GR400 AC electric generator as well as provide Standy Power and backup power solutions in specific demands. With engineering team and complete manufacturing equipment for making brushless alternator and diesel engines, we provide quality diesel power solutions for customers.
