SYG266TAD56 Standy Power 565KW 12-Cylinder Diesel Engine

These engines include non-road diesel engines, marine diesel engines, alternators and generator sets, which, as part of the main generator or standby power supply, are often used in communication, railway, oil, airports, hospitals, field exploration and other applications.

Category:

SYG Series Diesel Engine

Message

Contact

Product Details

Applications:

The power of this diesel engine is 565KW, and it is assembled into a generator set with the synchronous brushless motor. The generator set can be used in real estate, hotels, banks and other business electricity. It can also support mining, oil field, building construction, fieldwork operation and other industrial electricity.

At the same time, the diesel engine can also be matched with the high-pressure water pump to serve fire extinguishment.

After matching with the water pump and the sand pump, it forms the pump set and can be used for the dredging machine and pumping unit in agricultural machinery.

Parameters:

Model	SYG266TAD56
Bore (mm)	135
Stroke (mm)	155
Compression Ratio	16
Displacement (L)	26.6
1h Power (kW)	565
Min. BSFC(g/kW.h)	196
BSFC@Oil Rated Condition (g/kW.h)	≤0.4
Speed Regulating Rate(%)	0-5
Idle Speed (r/min)	700
Rated Speed (r/min)	1500/1800(optional)
Noise(dB)	≤115
Smoke (FSN)	≤2
Net Weight (kg)	2080
Interface	SAE 0.5#/14"

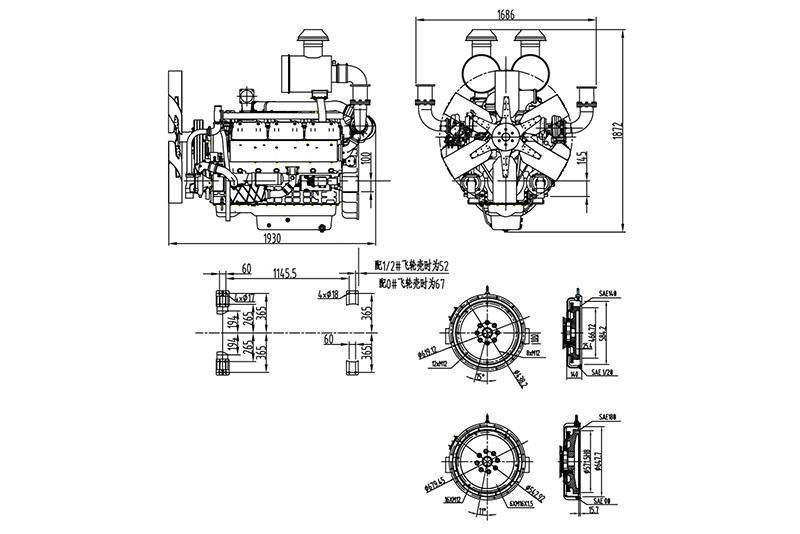

Engine package weights and dimensions

Length	1930mm
Width	1686mm
Height	1872mm
Weight(Dry)	2080kg

Shangyan Power, is a leading brushless alternator manufacturer and supplier since 1993, offering 710KVA-1725KVA 4-pole three phase alternator and diesel engine for making diesel generating sets. Our company design and manufacture different types of GR400 AC electric generator as well as provide Standy Power and backup power solutions in specific demands. With engineering team and complete manufacturing equipment for making brushless alternator and diesel engines, we provide quality diesel power solutions for customers.
