SY258TAB41 Standy Power 413KW 12-Cylinder Diesel Engine

These engines include non-road diesel engines, marine diesel engines, alternators and generator sets, which, as part of the main generator or standby power supply, are often used in communication, railway, oil, airports, hospitals, field exploration and other applications.

Category:

Drilling Equipment Diesel Engine

Message

Contact

Product Details

Applications:

This 413KW 12-cylinder diesel engine can be assembled into pump unit with pumps like sand pump or drilling pump, which is used as power supply power for oil exploitation, coal mine exploration, geological prospecting, nonferrous mineral exploration, geothermal exploration and other explorations.

Specifications:

Model	SY258TAB41
Bore (mm)	135
Stroke (mm)	150
Compression Ratio	16
Displacement (L)	25.8
1h Power (kW)	413
BSFC@ Rated Condition (g/kW.h)	195
Oil Consumption(g/kW.h)	≤0.7
Speed Regulating Rate(%)	0-5
Idle Speed (rpm)	700
Rated Speed (rpm)	1500/1800 (optional)
Noise(dB)	≤117
Smoke (FSN)	≤2
Net Weight (kg)	1950
Interface	SAE 0.5#/14"

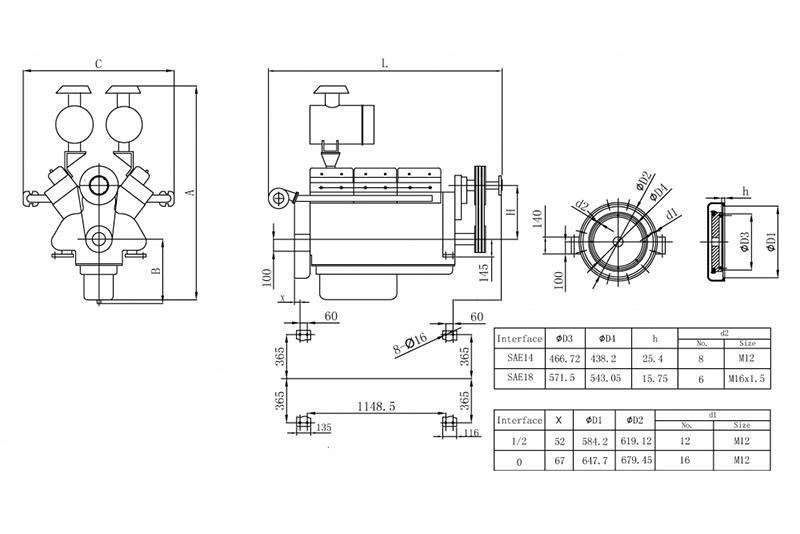

Dimension figure

Model	A	B	H	C	L
SY258TAD41	1850	500	450	1255	1930
